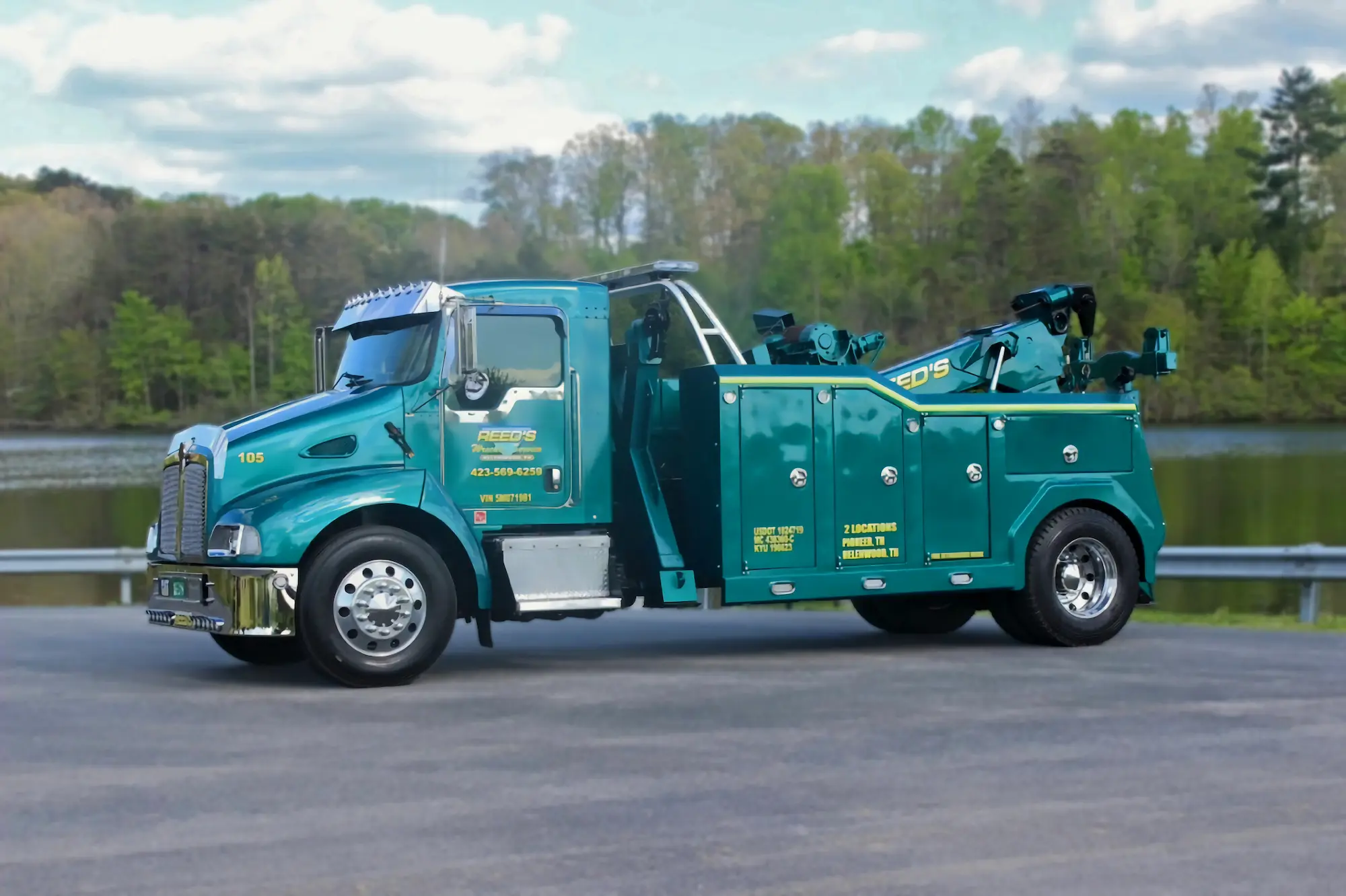

Main Truck Image

INT-16

Metro Tow Trucks’ INT-16 gives you the best of both worlds: the strength to handle big trucks and the finesse to tow light-duty vehicles and passenger cars without compromise. Designed for flexibility, and all-around performance, the INT-16 will quickly become the go-to truck in your fleet. From everyday calls to heavier jobs, it does it all—and does it profitably. No matter how you look at it, the INT-16 is a true revenue generator and one of the smartest investments you can make.

Standard Features

3546 mm (140”) Cab to Axle steel body
Two 10 ton (22,000 lbs) winch
Driver and passenger side manual controls
Wheel scoops
Fork receivers and 50 mm (2”) frame forks
Safety chains

Options

Tunnel box 610 mm (24’’)
Dollies
Extra 4 ton (8,800 lbs) winch
Rear anchors mounted on the under lift
Remote control
In cab controls
Extra frame forks
Custom paint in 2 or more colors
Extra tools (snatch blocks, chains, straps, hooks)
Aluminum body
LED working lights
LED strobe lights
LED lights inside toolbox
Installation services and extended warranty
Tow operators education & training

Specifications

Boom Rating

Retracted Capacity (at max angle), kg (16000)
Extended Capacity (at max angle), kg (8000)
Max. Lift Angle, deg (36)
Max. Hook Height, mm (4506)
Reach Past Tailboard, mm (1581)

Wrecker Boom Winch Rating

Winch Type (on 1st layer) (Planetary)
Quantity (on 1st layer), pc(s) 1(2)
Pulling force (on 1st layer), kg (16000)

Wrecker Boom Wire Rope (on 1st layer)

Work Load Limit (each line), kg (4600)
Construction (6×36 IWR)
Diameter, mm (16)
Length, m (60)

Euro Low Underlift Rating (Optional)

Retracted Capacity (on forks), kg (5400)
Retracted distance to the forks, mm (1685)
Extended Capacity (on forks), kg (3800)
Extended distance to the forks, mm (2626)
Negative tilt angle, deg (16)
Tow Rating, kg (14500)

Tire Lift Rating

Lifting Capacity (each arm), kg (5600)
Lifting Capacity (total), kg (11300)
Towing Capacity, kg (36000)

5th wheel adapter

Lifting Capacity, kg (6800)
Towing Capacity, kg (11300)

Pintle Hook Ball Hitch

2″ (50mm) Ball Hitch, kg (4500)
Pintle Hook, kg (7200)
Gross Trailer Weight Max. vertical Load, kg (1300)

Front Side Puller

Winch Type (Planetary)
Quantity, pc(s) (1)
Pulling force, kg (8000 (10000))

Drag Belly Wire Rope

Work Load Limit (each line), kg (4600(6200))
Construction (6×36 IWR)
Diameter, mm (16(19))
Length, m (60)

Hydraulic System

Operating Pressure, bar (203)
Hydraulic Line Burst Pressure, bar (1320)
System Flow, LPM (80)
System Capacity, L (60)
System Capacity, L
Reservoir Capacity, L (115)

Type of Oil

-17°C to 40°C / 0°F to 104°F (Mobilfluid 424)
-40°C to -17°C / -40°F to 0°F (Mobile DTE 10 Excel 32M)

Vehicle Recommendations

Front axle(s) weight (min) (1×5400)
Rear axle(s) weight (min) (1×9000)
Recommended GVW (min), kg (13600)
Recommended Tire Size (11R22.5)
Clear CA, mm (3546)

Unit Weight, kg (4609)

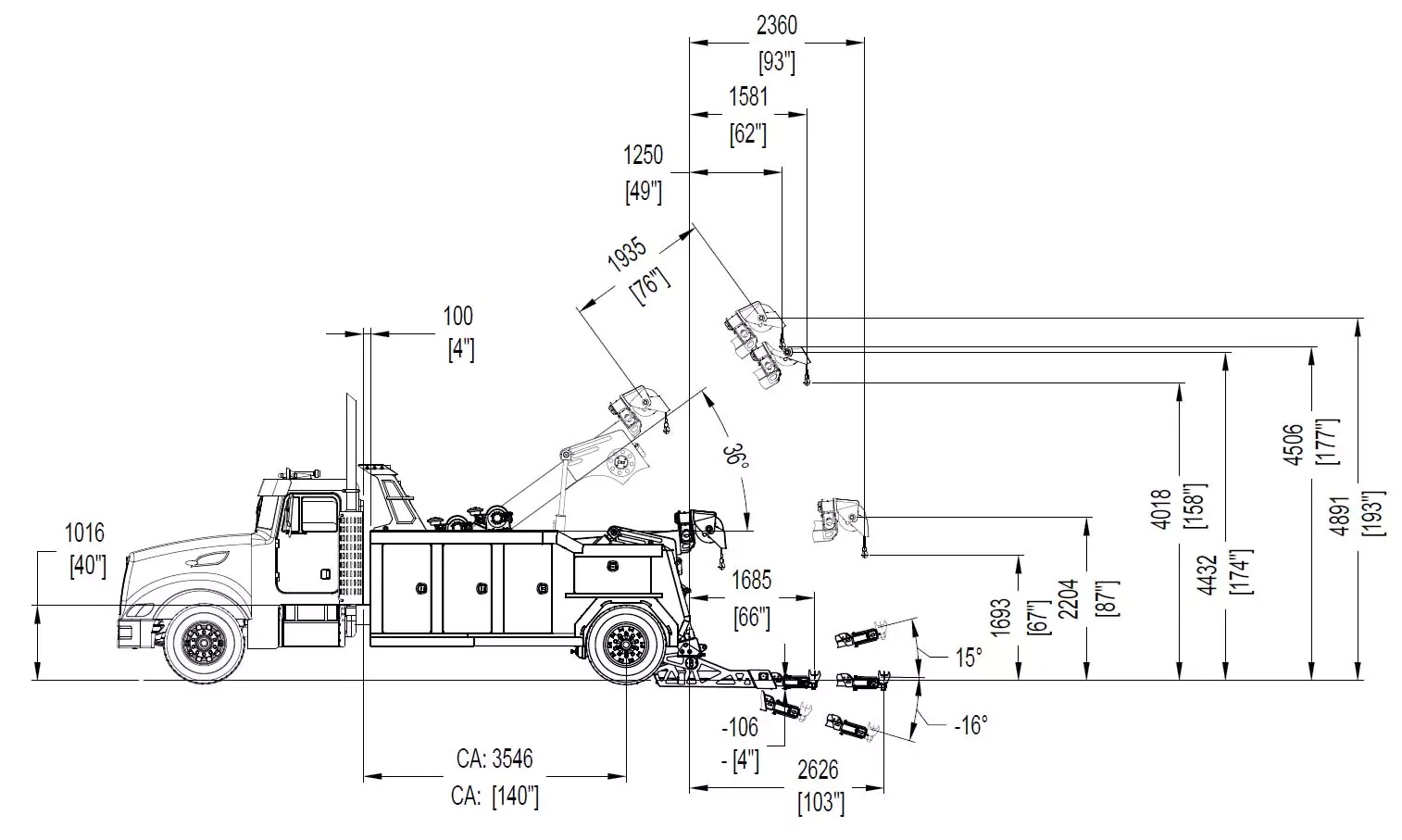

Line Drawing
