FB-5
The FB-5 may be our entry-level model, but it delivers far more capability than you’d expect.
With a robust 3.6-ton deck capacity—significantly higher than typical 2-ton units—the FB-5 lets your fleet handle more vehicles, more efficiently, and at a much lower investment cost.
Ideal for expanding your fleet without breaking the budget, the FB-5 makes light-duty truck transport effortless and reliable. A smart, economical way to boost your towing capacity.
Standard Features

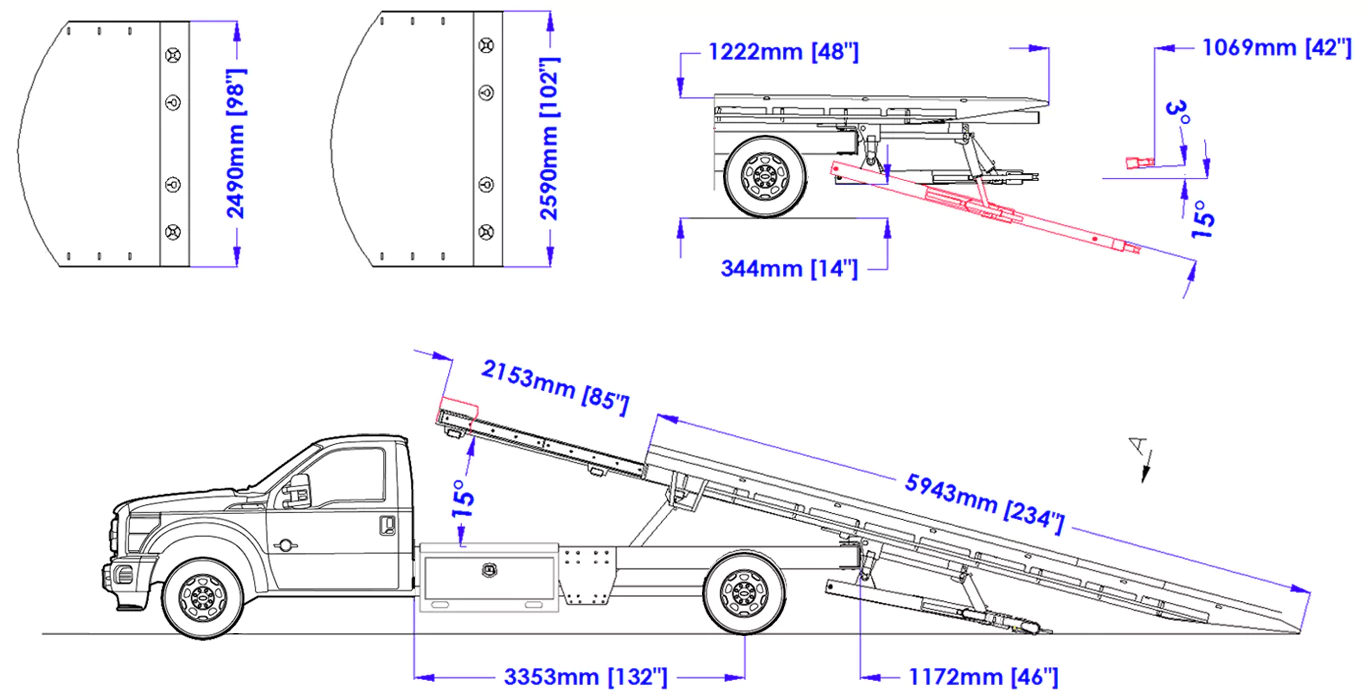

- Deck length of 5943 mm (19.5′)
- Standard width of 2463 mm (97”)
- One 914 mm (36”) side toolbox
- Independent light pylon
- Chrome door handle
- Driver and passenger side manual controls
- Safety chains
Options
- Wireless remote control
- 1828 mm (72″) side box
- 2590 mm (102″) Wide bed
- Frame forks
- Wheel lift receivers for single / double tires
- Removable rails
- Full recovery tool package
- Custom storage system
- Front push bumper
- XP, X-shape side puller
- In cab controls
- Full size LED light bar
- LED – working lights, strobe lights, lights inside toolbox
- Custom painting
- Installation services and extended warranty
- Tow operators education & training
Specifications
Deck
- Deck Rating, kg (3600)
- Overall Deck Length, mm (5936)
- Top Deck Length, mm (5365)
- Overall Deck Width, mm (2438)
- Deck Width (inside), mm (2432)
- Deck Thickness, mm (3)
- Deck Tilt Angle, deg (12)
Drag Winch Rating
- Winch Type (Worm)
- Quantity , pc(s) (1)
- Pulling force, kg (4000)
Drag Wire Rope
- Work Load Limit (each line), kg (1300)
- Construction (7×19)
- Diameter, mm (11)
- Length, m (30)
Underlift Rating
- Retracted Capacity (to center wheel lift), kg (1800)
- Retracted distance to center wheel lift, mm
- Extended Capacity (to center wheel lift), kg (900)
- Extended distance to center wheel lift, mm (1460)
- Negative tilt angle, deg (12)
- Tow Rating, kg (4500)
Tire Lift Rating
- Lifting Capacity (each arm), kg (5600)
- Lifting Capacity (total), kg (11300)
- Towing Capacity, kg (20000)
5th wheel adapter
- Lifting Capacity, kg (6800)
- Towing Capacity, kg (11300)
Pintle Hook Ball Hitch
- 2″ (50mm) Ball Hitch, kg (4500)
- Pintle Hook, kg (7200)
- Gross Trailer Weight Max. vertical Load, kg (1300)
Front Side Puller
- Winch Type (Worm)
- Quantity, pc(s) (1)
- Pulling force, kg (4000)
Drag Belly Wire Rope
- Work Load Limit (each line), kg (1300)
- Construction (7×19)
- Diameter, mm (11)
- Length, m (30)
Hydraulic System
- Operating Pressure, bar (203)
- Hydraulic Line Burst Pressure, bar(1320)
- System Flow, LPM (60)
- System Capacity, L (15)
- System Capacity, L (23)
- Reservoir Capacity, L (28)
Type of Oil
- -17°C to 40°C / 0°F to 104°F (Mobilfluid 424)
- -40°C to -17°C / -40°F to 0°F (Mobile DTE 10 Excel 32M)
Vehicle Recommendations
- Front axle(s) weight (min) (1×3600)
- Rear axle(s) weight (min) (1×6100)
- Recommended GVW (min), kg (8000)
- Recommended Tire Size (R19.5 Low Prof)
- Clear CA, mm (3015)
Unit Weight, kg (2215)
×
![]()
