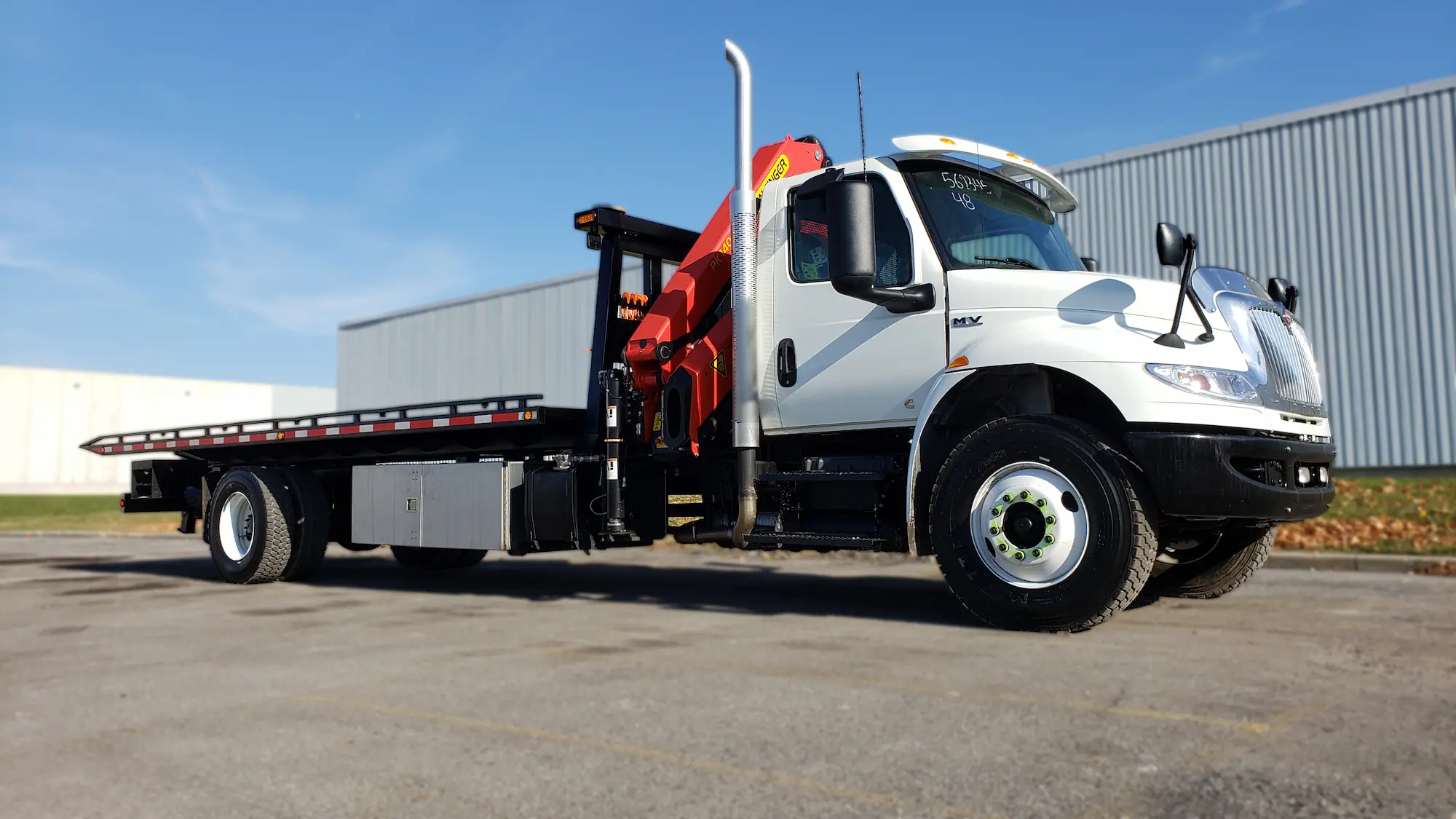

Main Truck Image

FB-15

With an impressive 9-ton capacity, the FB-15 is a true workhorse. No more turning down calls for heavier vehicles—this unit is designed to handle them. The FB-15 gives your fleet the strength and confidence to pick up heavier trucks with ease, expanding your capabilities and increasing your revenue opportunities. Serious power for serious work. Unit weight without chassis: 6,100 kg (13,450 lbs)

Standard Features

Choose your deck length from 5486 mm (18′) to 9144 mm (30′)
Standard width of 2463 mm (97”)
One 914 mm (36”) side toolbox
Independent light pylon
Chrome door handle
Driver and passenger side manual controls
Safety chains

Options

Wireless remote control
1828 mm (72″) side box
2590 mm (102″) Wide bed
Frame forks
Wheel lift receivers for single / double tires
Removable rails
Full recovery tool package
Custom storage system
Front push bumper
XP, X-shape side puller
In cab controls
Full size LED light bar
LED – working lights, strobe lights, lights inside toolbox
Custom painting
Installation services and extended warranty
Tow operators education & training

Reference Table

6705 mm (22′) 3810 mm (150”)
7010 mm (23′) 3962 mm (156”)
7315 mm (24′) 4216 mm (166”)
7620 mm (25′) 4318 mm (170”)
7924 mm (26′) 4622 mm (174”)
8010 mm (26.3′) 5182 mm (204″)
8534 mm (28′) 4826 mm (190”)
8839 mm (29′) 5029 mm (198”)
9144 mm (30′) 5232 mm (206”)

Specifications

Deck

Deck Rating, kg (9000)
Overall Deck Length, mm (8013)
Top Deck Length, mm (7403)
Overall Deck Width, mm (2590)
Deck Width (inside), mm (2420)
Deck Thickness, mm (5)
Deck Tilt Angle, deg (11)

Drag Winch Rating

Winch Type (Planetary)
Quantity , pc(s) (1)
Pulling force, kg (10000)

Drag Wire Rope

Work Load Limit (each line), kg (6200)
Construction (7×36 IWR)
Diameter, mm (19)
Length, m (60)

Underlift Rating

Retracted Capacity (to center wheel lift), kg (8100)
Retracted distance to center wheel lift, mm
Extended Capacity (to center wheel lift), kg (4000)
Extended distance to center wheel lift, mm (1070)
Negative tilt angle, deg (15)
Tow Rating, kg (4500)

Tire Lift Rating

Lifting Capacity (each arm), kg (5600)
Lifting Capacity (total), kg (11300)
Towing Capacity, kg (20000)

5th wheel adapter

Lifting Capacity, kg (6800)
Towing Capacity, kg (11300)

Pintle Hook Ball Hitch

2″ (50mm) Ball Hitch, kg (4500)
Pintle Hook, kg (7200)
Gross Trailer Weight Max. vertical Load, kg (1300)

Front Side Puller

Winch Type (Worm)
Quantity, pc(s) (1)
Pulling force, kg (4000)

Drag Belly Wire Rope

Work Load Limit (each line), kg (4600 (6200))
Construction (6×36 IWR)
Diameter, mm (16 (19))
Length, m (60)

Hydraulic System

Operating Pressure, bar (203)
Hydraulic Line Burst Pressure, bar(1320)
System Flow, LPM (80)
System Capacity, L (34)
System Capacity, L
Reservoir Capacity, L (60)

Type of Oil

-17°C to 40°C / 0°F to 104°F (Mobilfluid 424)
-40°C to -17°C / -40°F to 0°F (Mobile DTE 10 Excel 32M)

Vehicle Recommendations

Front axle(s) weight (min) (1×6600)
Rear axle(s) weight (min) (1×10400 (2×10400))
Recommended GVW (min), kg (18000 (27500))
Recommended Tire Size (11R22.5)
Clear CA, mm (5180)

Unit Weight, kg (6022)

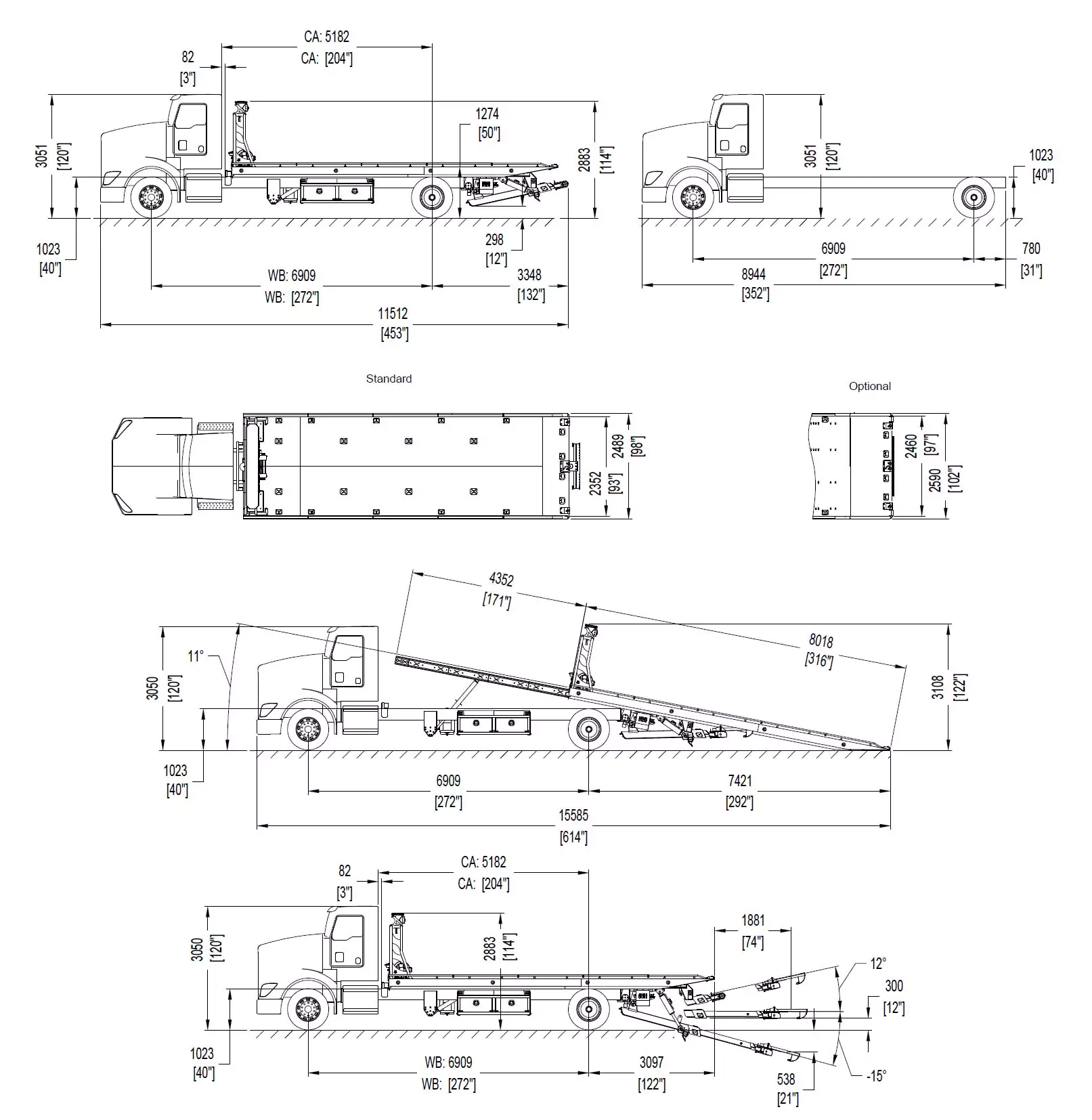

Line Drawing
