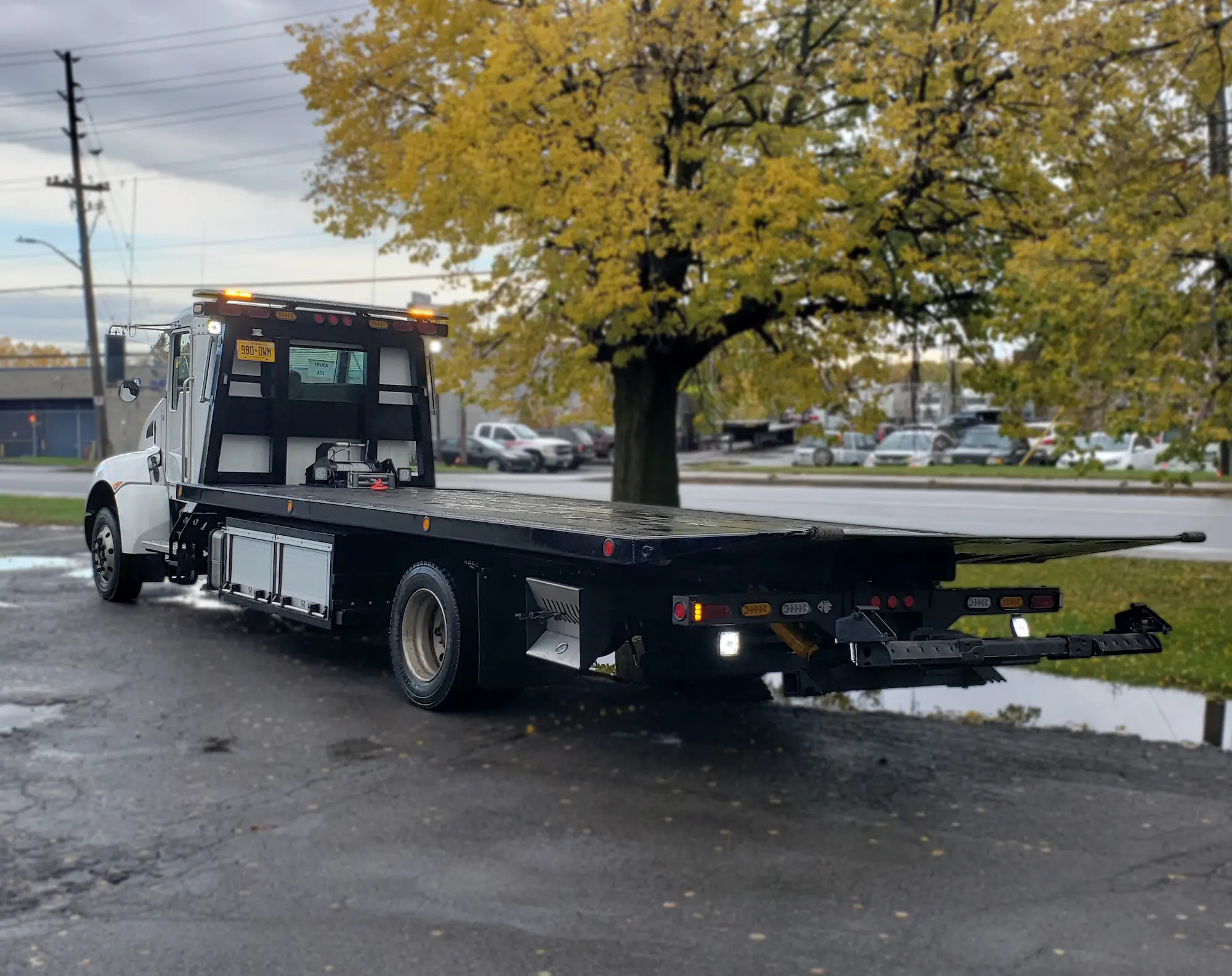

FB-10
The FB-10 is an affordable way to add highly versatile flatbeds to your fleet.
With a strong 4.5-ton capacity—well above standard flatbeds—it gives you the extra strength needed to handle medium-duty trucks with confidence and ease.
If you’re looking to expand capability without increasing budget, the FB-10 delivers exceptional value, reliability, and performance in every job.
Unit weight without chassis: 4,000 kg (8,800 lbs)
Standard Features
- Choose your deck length from 5486 mm (18′) to 6820 mm (22.4′)
- Standard width of 2463 mm (97”)
- One 914 mm (36”) side toolbox
- Independent light pylon
- Chrome door handle
- Driver and passenger side manual controls
- Safety chains
Options
- Wireless remote control
- 1828 mm (72″) side box
- 2590 mm (102″) Wide bed
- Frame forks
- Wheel lift receivers for single / double tires
- Removable rails
- Full recovery tool package
- Custom storage system
- Front push bumper
- XP, X-shape side puller
- In cab controls
- Full size LED light bar
- LED – working lights, strobe lights, lights inside toolbox
- Custom painting
- Installation services and extended warranty
- Tow operators education & training

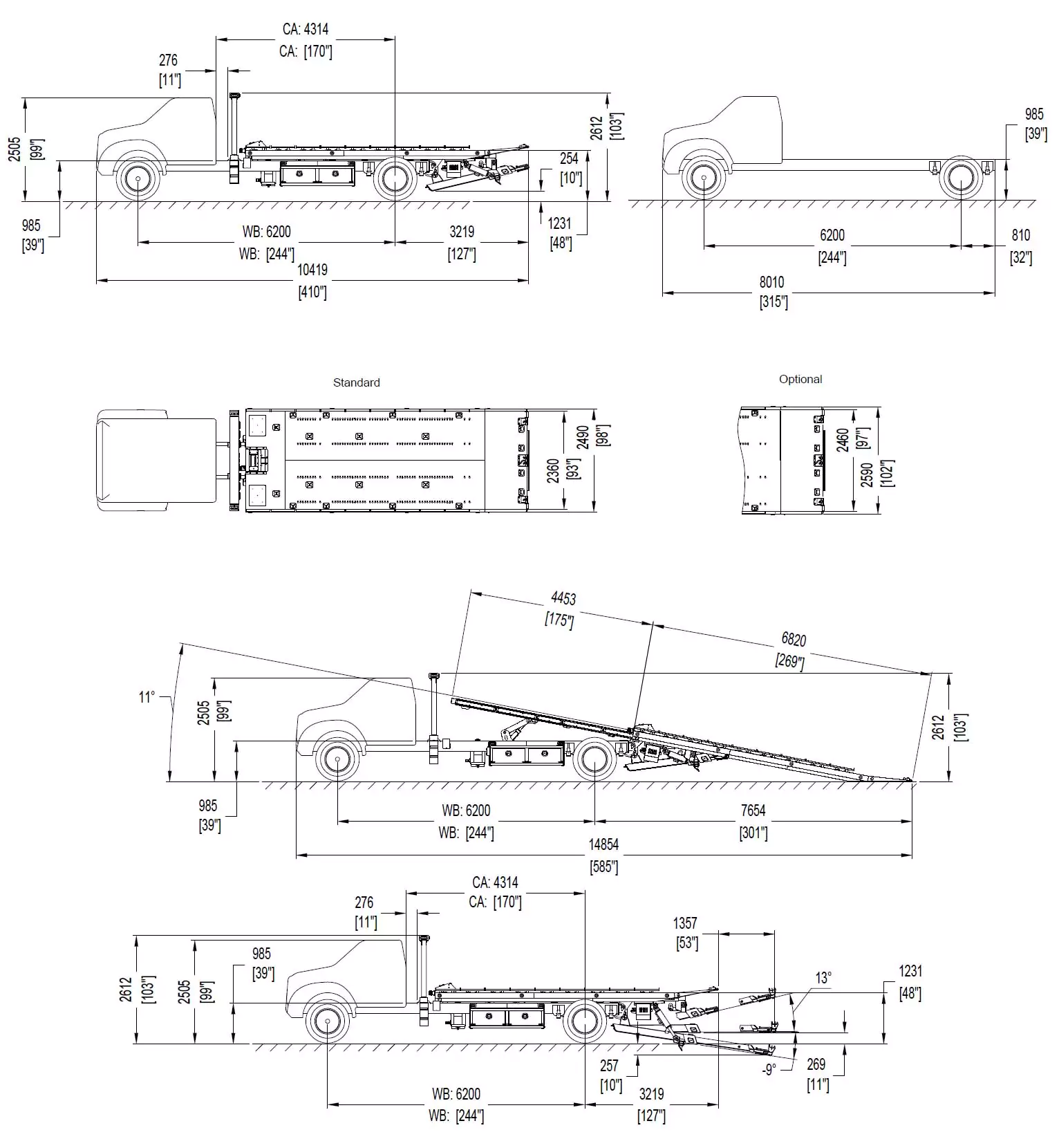

Reference Table
- 6248 mm (20.5′) 3352 mm (132”)
- 6400 mm (21′) 3505 mm (138”)
- 6553 mm (21.5′) 3657 mm (144”)
- 6705 mm (22′) 3810 mm (150”)
- 7010 mm (22.4′) 4314 mm (156”)
Specifications
Deck
- Deck Rating, kg (4500)
- Overall Deck Length, mm (6394)
- Top Deck Length, mm (5784)
- Overall Deck Width, mm (2438)
- Deck Width (inside), mm (2432)
- Deck Thickness, mm (5)
- Deck Tilt Angle, deg (13)
Drag Winch Rating
- Winch Type (Worm)
- Quantity , pc(s) (1)
- Pulling force, kg (4000)
Drag Wire Rope
- Work Load Limit (each line), kg (1300)
- Construction (7×19)
- Diameter, mm (11)
- Length, m (30)
Underlift Rating
- Retracted Capacity (to center wheel lift), kg (2700)
- Retracted distance to center wheel lift, mm
- Extended Capacity (to center wheel lift), kg (1400)
- Extended distance to center wheel lift, mm (1300)
- Negative tilt angle, deg (9)
- Tow Rating, kg (4500)
Tire Lift Rating
- Lifting Capacity (each arm), kg (5600)
- Lifting Capacity (total), kg (11300)
- Towing Capacity, kg (20000)
5th wheel adapter
- Lifting Capacity, kg (6800)
- Towing Capacity, kg (11300)
Pintle Hook Ball Hitch
- 2″ (50mm) Ball Hitch, kg (4500)
- Pintle Hook, kg (7200)
- Gross Trailer Weight Max. vertical Load, kg (1300)
Front Side Puller
- Winch Type (Worm)
- Quantity, pc(s) (1)
- Pulling force, kg (4000)
Drag Belly Wire Rope
- Work Load Limit (each line), kg (1300)
- Construction (7×19)
- Diameter, mm (11)
- Length, m (30)
Hydraulic System
- Operating Pressure, bar (203)
- Hydraulic Line Burst Pressure, bar(1320)
- System Flow, LPM (80)
- System Capacity, L (34)
- System Capacity, L
- Reservoir Capacity, L (60)
Type of Oil
- -17°C to 40°C / 0°F to 104°F (Mobilfluid 424)
- -40°C to -17°C / -40°F to 0°F (Mobile DTE 10 Excel 32M)
Vehicle Recommendations
- Front axle(s) weight (min) (1×3600 (1×5400))
- Rear axle(s) weight (min) (1×6100 (1×9000))
- Recommended GVW (min), kg (8000 (13600))
- Recommended Tire Size (R19.5 (11R22.5))
- Clear CA, mm (3669)
Unit Weight, kg (2483)
×
![]()
